N10-006 question 960 discussion

answered

Wireless network users recently began experiencing speed and performance issues after
access point 2 (AP2) was replaced due to faulty hardware. The original network was
installed according to a consultants specifications and has always worked without a
problem.
You a network technician, have been tasked with evaluating the situation and resolving the

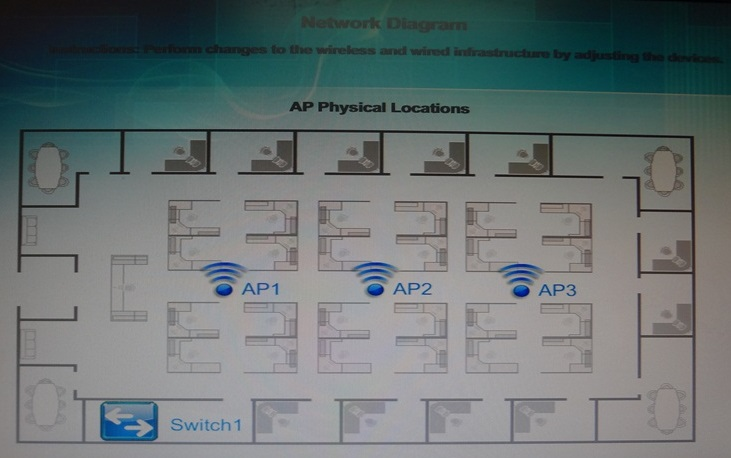

issues to improve both performance and connectivity. Refer to the following diagram and
perform any Necessary changes to the wireless and wired infrastructure by adjusting
devices.
NotE. Adjust the LEAST number of devices needed to fix the issue all blue icons in the
image are clickable.






Created 1 year ago by nrbastola9@gmail.com

nrbastola9@gmail.com

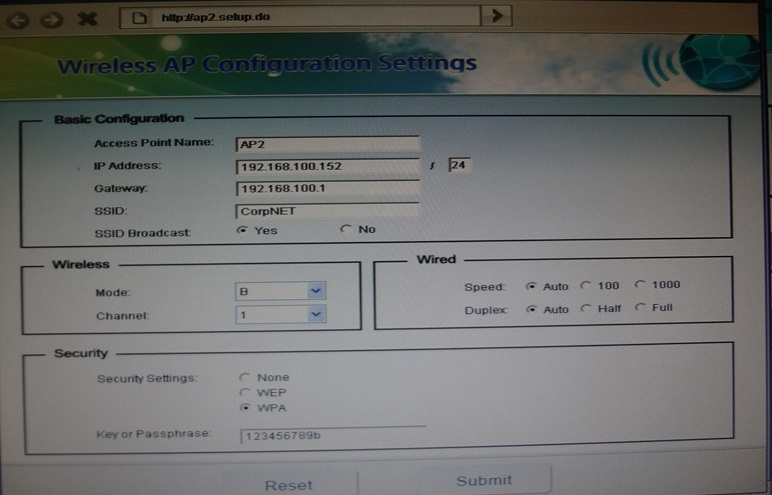

The wireless mode should be ‘G’ and channel should be 6.

Lanai

In addition, the wired technology should operate at 100 and full duplex.

Brachinus

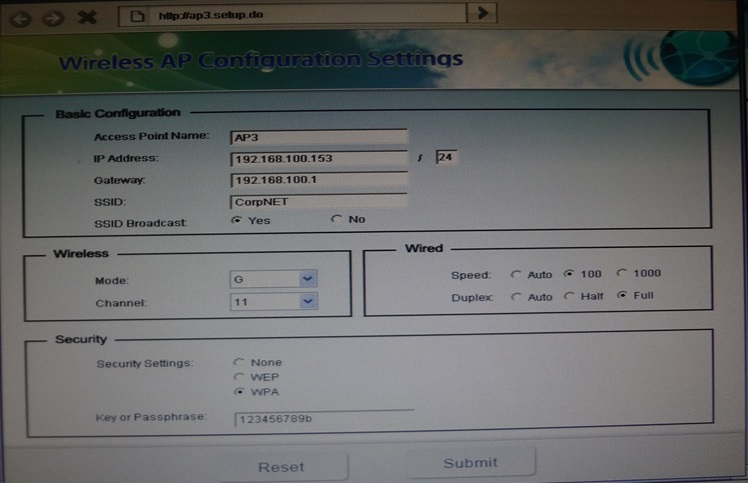

If channel is 11 it'll interfere with AP3. Channel should be 6.
